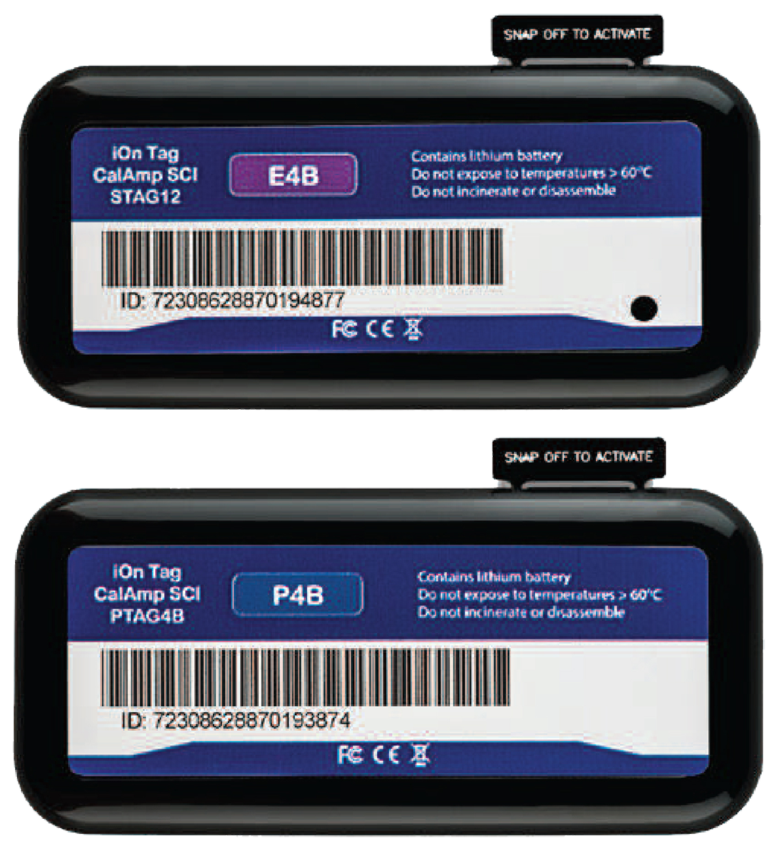

Bluetooth Tags
Compact Bluetooth tags for location and environmental condition monitoring
CalAmp Bluetooth Tags provide cost-effective location, temperature, and humidity monitoring in a compact footprint. They pair with rechargeable or wired gateways and the CalAmp app to support alerts, history reports, and NIST-traceable temperature reporting.
- Tracks asset location, battery level, temperature, and humidity
- Pairs automatically with compatible gateways in proximity
- Peel-and-stick or in-package installation simplifies deployment
- Operating range extends up to 250 feet with line-of-sight visibility
- IP65 or IP67 protection supports rugged industrial environments
- Configurable alerts and reports are available in the CalAmp app
Product specifications
| Physical Design | |
|---|---|
| Dimensions | 72 × 34 × 4.7 mm (2.83 × 1.34 × 0.19 in) |
| Wireless Interfaces | |
|---|---|
| Bluetooth | BLE 4.2 |
| Power | |
|---|---|
| Battery Chemistry | Primary lithium — chemistry not specified |
| Battery Type | Coin cell, non-replaceable |
| Operating Parameters | Activated upon breaking off tab Max output power is less than 100mW EIRP |
| Environmental | |
|---|---|
| Operating and Storage Temperature | -20 C to 60° C (operating) -30 C to 60º C (storage) |
| Shock and Vibration | Shock and vibration resistant |
| Ingress Protection Rating (IP) | PTAG04: IP67 STAG04HT: IP65 |
| Sensors | |
|---|---|
| Temperature Sensor | STAG04HT NIST Traceable Accuracy +/- 0.5C Min/Max Threshold (configurable) |
| Humidity Sensor | STAG04HT Accuracy 4% rH (20% to 80% rH) |
| Proximity Sensor | PTAG04 and STAG04HT |
| Software Services | |
|---|---|
| Device Management | Manage, configure, and deploy OTA software updates to connected assets at scale |
| CalAmp Telematics Cloud | Stream telematics data into proprietary systems with flexible API integration |
| CalAmp Application | Fleet and asset management software for tracking, monitoring, and managing vehicles, equipment, drivers, assets, and cargo. |
| Certifications | |
|---|---|
| Certifications | FAA Compliant, FCC, CE, NOM, IFETEL |
