LMU-1300M™
Compact LTE CAT M1 tracker for vehicles and powered assets

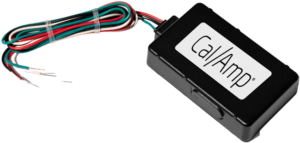

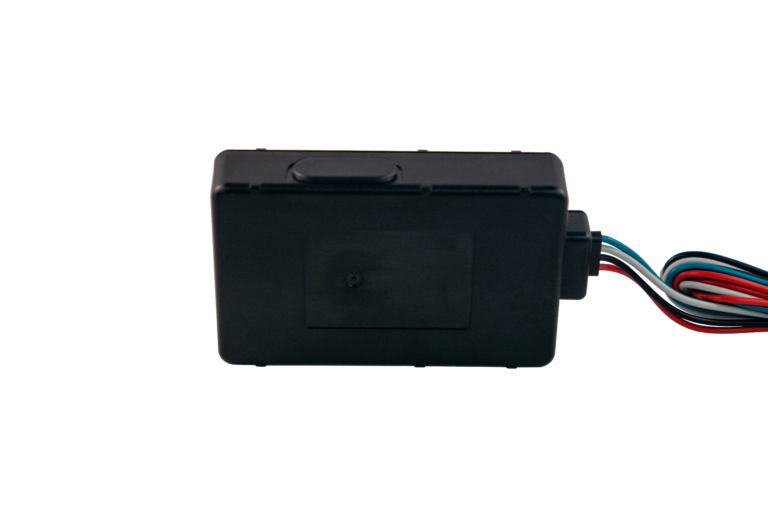

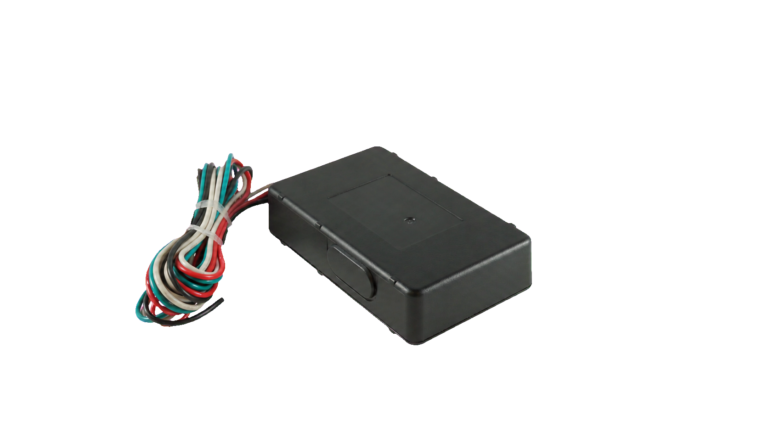

1 of 3
The LMU-1300M is a compact, rugged GPS tracker designed for reliable vehicle and asset visibility in harsh environments. Flexible power options, a built-in backup battery, configurable I/O, driver monitoring, and CalAmp cloud services support scalable fleet operations.
- LTE CAT M1 connectivity for vehicle and asset tracking
- Wired, cigarette-lighter, or optional OBDII power installation
- Driver-behavior monitoring includes speeding and harsh-event detection
- Internal backup battery maintains visibility during power loss
- Remote safety lockout supports theft detection and recovery
- Digital I/O and a triple-axis motion sensor expand functionality
Product specifications
| Physical Design | |
|---|---|
| Dimensions | 89 × 50.1 × 19.2 mm (3.50 × 1.97 × 0.76 in) |
| Weight | 100 g (3.5 oz) |
| Cellular | |
|---|---|
| LTE Cat-M1 Bands | B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B85 |
| 2G Fallback Bands | B2, B3, B5, B8 |
| Cellular Data Support | SMS, UDP Packet Data |
| GNSS | |
|---|---|
| GNSS Constellations | GPS, GLONASS, Galileo, BeiDou, QZSS |
| Tracking Sensitivity | -157 dBm |
| Acquisition Sensitivity | -157 dBm (hot start) -146 dBm (cold start) |
| Location Accuracy | <2.5m CEP Open Sky |
| Location Update Rate | Up to 5 Hz |
| Vehicle & Interfaces | |
|---|---|
| Serial Interface | USB |
| Antennas & SIM | |
|---|---|
| Cellular Antenna | Internal |
| GPS / GNSS Antenna | Internal |
| SIM Access | External |
| Power | |
|---|---|
| Operating Voltage | 12/24 VDC Vehicle Systems 9-32 VDC (start-up, operating) 7-32 VDC (momentary) |
| Power Consumption | Typical <500uA @ 12V (low power sleep) Typical <15mA @ 12 V (radio-active sleep) Typical <60mA @ 12 V (GPS tracking and cell idle) |
| Battery Capacity | 180 mAh |
| Battery Chemistry | Lithium-ion (Li-ion) |
| Charging Temperature | 0° to +45° C |
| Environmental | |
|---|---|
| Operating and Storage Temperature | -30° to +60° C (connected to primary power) -20° to +60° C (operating on internal battery) -10° to +25° C ≤ 6 months (long term storage with battery) |
| Humidity | 90% RH @ 50° C non-condensing |
| Shock and Vibration | MIL-STD-202G, MIL-STD-810F, SAE J1455 |
| Electrostatic Discharge | IEC 61000-4-2, 4 kV |
| Ingress Protection Rating (IP) | IP65 |
| Sensors | |
|---|---|
| Motion Sensor | 3-axis accelerometer; 3-axis gyroscope |
| I/O | |
|---|---|
| Digital Inputs | 1 (high/low selectable 0-32 VDC) |
| Digital Outputs | 1 (open collector relay 150mA) |
| Serial Interface | 1 USB Port |
| Edge Intelligence | |
|---|---|
| Firmware | EdgeCore |
| Edge Programming | PEG2 & EdgeApp SDK |
| On-Device Geofences | 32 built-in |
| Buffered Messages | Up to 20,000 |
| Device Operating System | ThreadX RTOS |
| Software Services | |
|---|---|
| Device Management | Manage, configure, and deploy OTA software updates to connected assets at scale |
| CalAmp Telematics Cloud | Stream telematics data into proprietary systems with flexible API integration |
| CalAmp Application | Fleet and asset management software for tracking, monitoring, and managing vehicles, equipment, drivers, assets, and cargo. |
| Certifications | |
|---|---|
| Certifications | FCC, IC, PTCRB, CE/RED, Applicable Carriers |
