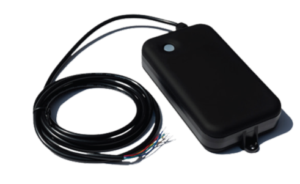

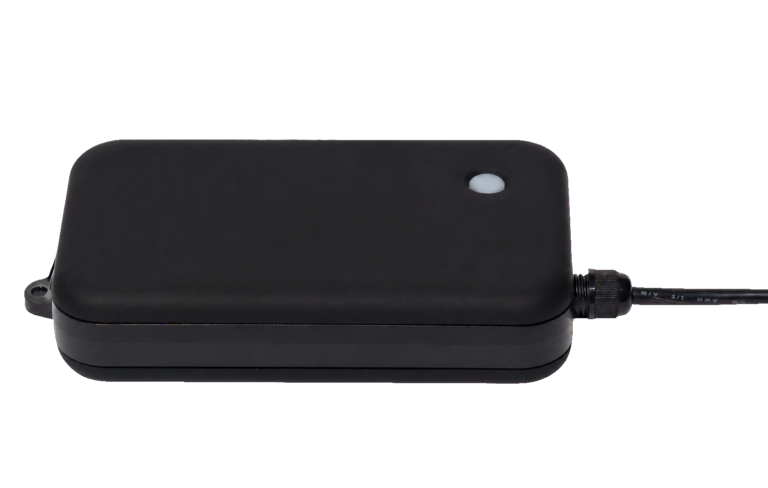

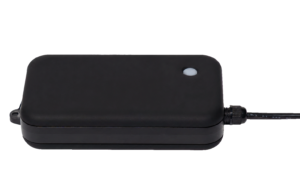

SC-1205V™
LTE CAT M1 tracking gateway for fixed and in-transit assets
1 of 3
The SC-1205V logs location and environmental conditions for fixed-site and in-transit asset tracking. LTE CAT M1 connectivity, onboard sensors, a captive harness, and a high-capacity Bluetooth Low Energy gateway that reads up to 600 CalAmp iOn Tags support warehouse and cargo visibility.
- LTE CAT M1 connectivity supports asset visibility
- Bluetooth Low Energy gateway reads up to 600 CalAmp iOn Tags
- Captive-harness sensors monitor light, motion, shock, and temperature
- Digital and analog I/O connect external sensors and controls
- Internal backup battery maintains reporting during power loss
- Supports fixed-site, warehouse, cargo, and asset monitoring
Product specifications
| Physical Design | |
|---|---|
| Dimensions | 142.7 × 82.7 × 32.7 mm (5.62 × 3.26 × 1.29 in) |
| Weight | 258 g (9.1 oz) |
| Cellular | |
|---|---|
| LTE Cat-M1 Bands | B1, B2, B3, B4, B5, B8, B12, B13, B28 |
| 2G Fallback Bands | B2, B3, B5, B8 |
| GNSS | |
|---|---|
| GNSS Constellations | GPS |
| Location Accuracy | GPS: 3-5 m; Wi-Fi: 100 m; Cellular: 500 m |
| Wireless Interfaces | |
|---|---|
| Bluetooth | BLE |
| Wi-Fi | 802.11b/g/n, 2.4 GHz |
| Antennas & SIM | |
|---|---|
| Cellular Antenna | Internal |
| GPS / GNSS Antenna | Internal |
| Power | |
|---|---|
| Operating Voltage | 12/24 VDC Vehicle Systems 9-30 VDC (start-up, operating) 7-35 VDC (momentary) |
| Power Consumption | Typical 4 uA at 12 V deep sleep; typical 100 mA at 12 V radio-active sleep |
| Battery Capacity | Up to 4000 mAh |
| Battery Chemistry | Lithium-ion (Li-ion) |
| Battery Type | Internal backup battery |
| Charging Temperature | 0° to +45° C |
| Environmental | |
|---|---|
| Operating and Storage Temperature | Operating: -10 to 50 C (14 to 122 F) Storage: -10 to 40 C (14 to 104 F) |
| Humidity | 85% RH at 50 C, non-condensing |
| Shock and Vibration | SAE J1455 |
| Electrostatic Discharge | IEC 61000-4-2, 4 kV |
| Ingress Protection Rating (IP) | IP66 Certified (connector dependent) |
| Sensors | |
|---|---|
| Temperature Sensor | NIST traceable; typical accuracy +/-0.5 C (-30 to 60 C); configurable min/max thresholds |
| Shock Sensor | Dedicated 3-axis accelerometer; 16 G max; impact, drop and 90-degree tilt events |
| Light Sensor | Threshold on/off |
| Proximity Sensor | Supported through BLE proximity tags |
| I/O | |
|---|---|
| Ignition Inputs | 1 ignition input (included among 2 digital inputs) |
| Digital Inputs | 2 (general purpose and ignition) |
| Digital Outputs | 1 general purpose; door locking/unlocking |
| Analog Inputs | 1 external ADC input, 0-35 VDC |
| Status LEDs | Status LED shown on device; behavior not specified |
| Software Services | |
|---|---|
| Device Management | Manage, configure, and deploy OTA software updates to connected assets at scale |
| CalAmp Telematics Cloud | Stream telematics data into proprietary systems with flexible API integration |
| CalAmp Application | Fleet and asset management software for tracking, monitoring, and managing vehicles, equipment, drivers, assets, and cargo. |
| Certifications | |
|---|---|
| Certifications | FCC; PTCRB; Industry Canada |
