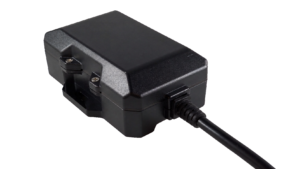

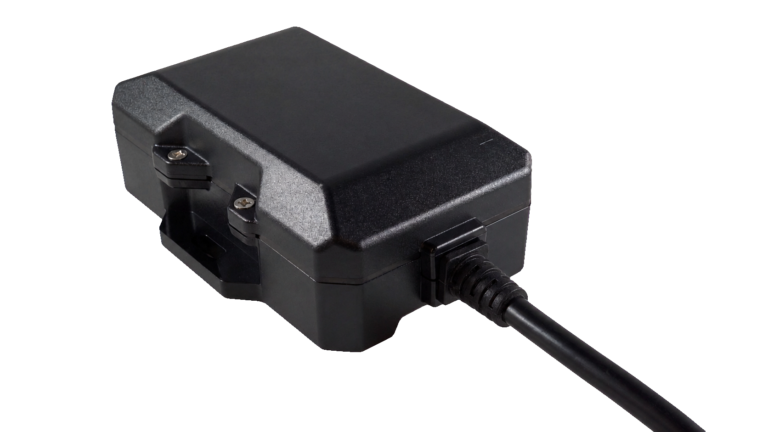

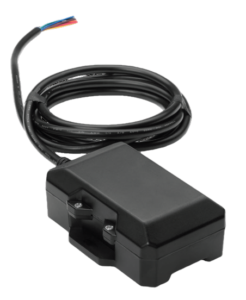

TTU-2830M™
Weatherproof LTE CAT M1 asset tracker with 12-wire harness
1 of 2
The TTU-2830M is a weatherproof LTE CAT M1 tracker designed for long-term deployment on powered assets that may remain disconnected for extended periods. Global cellular coverage, Bluetooth Low Energy 5.0, a large rechargeable battery, expansive I/O, and CalAmp edge intelligence provide flexible asset management.
- Global LTE CAT M1 connectivity with GSM and GPRS fallback
- Bluetooth Low Energy 5.0 supports peripheral integration
- Rechargeable 5.2 Ah battery supports up to 500 message cycles
- 12-wire harness provides digital, analog, serial, and 1-Wire I/O
- Triple-axis motion sensor detects movement, impact, and tilt
- IP66 enclosure and CalAmp edge intelligence support rugged deployments
Product specifications
| Physical Design | |
|---|---|
| Dimensions | 114 × 80 × 39 mm (4.49 × 3.15 × 1.54 in) |
| Weight | 580 g (20.5 oz) |
| Cellular | |
|---|---|
| LTE Cat-M1 Bands | B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28, B39 |
| 2G Fallback Bands | B2, B3, B5, B8 |
| Cellular Data Support | SMS, UDP Packet Data, TCP |
| GNSS | |
|---|---|
| GNSS Constellations | GPS, GLONASS, SBAS (WAAS, EGNOS, MSAS) |
| GNSS Channels | 55 Channel |
| Tracking Sensitivity | -167 dBm |
| Acquisition Sensitivity | -156 dBm (hot start) -148 dBm (cold start) |
| Location Accuracy | ~2.0m CEP Open Sky (SBAS 24 hours static) |
| Location Update Rate | Up to 4 Hz |
| A-GPS Location Assistance Capable | Yes |
| Anti-Jamming Detection | Yes |
| Wireless Interfaces | |
|---|---|
| Bluetooth | Bluetooth 5.0 |
| Vehicle & Interfaces | |
|---|---|
| Serial Interface | TTL |
| Antennas & SIM | |
|---|---|
| Cellular Antenna | Internal |
| GPS / GNSS Antenna | Internal |
| SIM Access | Internal (2FF SIM) |
| Power | |
|---|---|
| Operating Voltage | 12/24 VDC Vehicle Systems 9-30 VDC (start-up, operating) 7-32 VDC (momentary) |
| Power Consumption | Typical 400uA @ 12V (deep sleep) Typical 15mA @ 12V (radio-active sleep) Typical 60mA @ 12V (active tracking w/GPS and cell enabled) |
| Battery Capacity | Up to 5200 mAh |
| Battery Chemistry | Lithium-ion (Li-ion) |
| Battery Life | 500 message cycles on a fully charged battery |
| Charging Temperature | 0° to +45° C |
| Environmental | |
|---|---|
| Operating and Storage Temperature | -30° to +60° C (connected to primary power) -20° to +60° C (operating on internal battery) -20° to +25° C (storage > 3 months) |
| Humidity | 85% RH @ 50° C non-condensing |
| Shock and Vibration | MIL-STD-202G, SAE J1455 |
| Electrostatic Discharge | IEC 61000-4-2, 4 kV |
| Ingress Protection Rating (IP) | IP66 |
| Sensors | |
|---|---|
| Motion Sensor | 3-axis accelerometer |
| I/O | |
|---|---|
| Primary Device Connector | 12 wire captive harness |
| Ignition Inputs | 1 fixed bias |
| Digital Inputs | 2 (high/low bias selectable 0-30 VDC) |
| Digital Outputs | 3 (open collector relay 150mA)* |
| Analog Inputs | 1 external ADC input |
| Serial Interface | 1 TTL port |
| DC Power Outputs | 1 switched VIN* |
| 1-Wire Interface | 1 (driver ID/temperature sense) |
| Status LEDs | 2 (GPS and cellular) |
| Edge Intelligence | |
|---|---|
| Firmware | 32-Bit |
| Edge Programming | PEG |
| Software Services | |
|---|---|
| Device Management | Manage, configure, and deploy OTA software updates to connected assets at scale |
| CalAmp Telematics Cloud | Stream telematics data into proprietary systems with flexible API integration |
| CalAmp Application | Fleet and asset management software for tracking, monitoring, and managing vehicles, equipment, drivers, assets, and cargo. |
| Certifications | |
|---|---|
| Certifications | FCC, IC, CE, PTCRB, RoHS, BT SIG, RCM |
| Accessories | |
|---|---|
| Accessories | 5C351: CABLE, BOARD, GROMMET, 12-PIN DUAL ROW |
| 5C800: CABLE, BOARD, GROMMET, 11-WIRE, CONNECTORIZED | |
| 5C824: CABLE, BOARD, GROMMET, 4-PIN DEUTCH | |
| 5C902-10: CABLE, BOARD, GROMMET, 10-WIRE | |
| 5C902-12: CABLE, BOARD, GROMMET, 12-WIRE | |
| 5C949: CABLE, BOARD, GROMMET, 12-WIRE | |
| 5C952: CABLE, BOARD, GROMMET, 12 WIRE, FUSED | |
| 5C969-12: CABLE, BOARD, GROMMET, 8-WIRE, DEUTSCH | |
| 5C969-TMB: CABLE, DEUTSCH, 4-WIRE, FUSED | |
| 5C969: CABLE, BOARD, GROMMET, 8-WIRE, DEUTSCH | |
| 5C986: CABLE, 7-WIRE, EYELET CRIMP, CLOSED END SPLICE | |
| 5C988: CABLE, BOARD, GROMMET, M19 12-PIN | |
| 5C989: 3 meters, CABLE, M19 12-PIN, FEMALE | |
